Si Series

10 through 1150W Emergency Lighting Inverters with Power Share Technology

The UL924 Listed Si Series emergency lighting inverters operate LED and fluorescent fixtures with pure sinusoidal power during loss of normal AC power. The Si Series 10 to 1150 W inverters support emergency lighting for 90 minutes in accordance with life safety code requirements. All Si Inverters can be de rated for 2 hour run time. See 2 Hour Run Product Guide.

BAA TAA Compliant Product List



Features Data Sheets

Si-10-PST

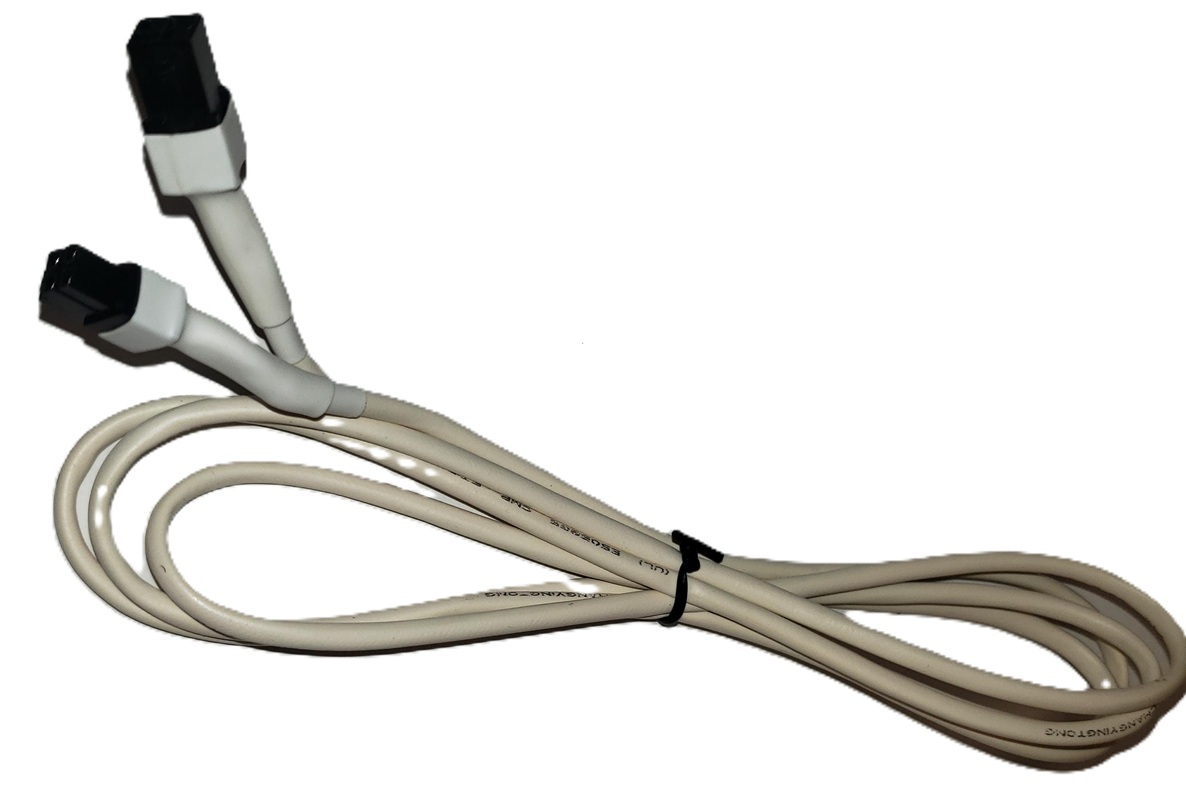

RTS-L-EXT 5FT

Optional: 5 Ft Extension for the remoting of the Si-10-PST Test Switch - Spec

Optional: RTS-FAP Fire Alarm Panel Test Switch - Spec

10 Watt  UL924 Listed Pure Sine Wave Emergency Lighting Micro Inverter - Single Zone

Universal Input/Output - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology- for up to 50W luminaire loads when used with 0-10 Vdc systems

The new Si-10-PST is less than 3 lbs  It is compatible with line voltage dimming or 0-10 Vdc systems and includes features include remote mounting distance of 300 feet and includes our Power Share Technology. Power Share Technology allows this 10W micro inverter to operate 0-10 Vdc luminaires with normal load power of up to 50W @120vac or @277vac. This patent pending product well suited for flat panel and small disk luminaire jobs.

Compatible with linear and logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-10-PST can be connected to normal and emergency loads up to 7W.

No ALCR Devices are needed when Si-10-PST  is used with switched, 0-10 Vdc or line voltage dimming applications!

  Title 20 California Energy Compliant

Spec

Instructions

Si-100-PST

RTS-L-EXT 5FT

Optional: 5 Ft Extension for the remoting of the Si-100-PST Test Switch - Spec

Optional: RTS-FAP Fire Alarm Panel Test Switch - Spec

100 Watt  UL924 Listed Pure Sine Wave Emergency Lighting Micro Inverter - Single Zone

Universal Input/Output - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology- for up to 300W luminaire(s) loads when used with 0-10 Vdc systems

The new Si-100-PST is less than 7 lbs  It is compatible with line voltage dimming or 0-10 Vdc systems and includes features include remote mounting distance of 300 feet and includes our Power Share Technology. Power Share Technology allows this 100W micro inverter to operate 0-10 Vdc luminaires with normal load power of up to 300W @120vac or @277vac. This patent pending product will cut job cost and solve difficult emergency lighting challenges.

Compatible with linear and logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-100-PST can be connected to normal and emergency loads up to 70W.

No ALCR Devices are needed when Si-100-PST  is used with switched, 0-10 Vdc or line voltage dimming applications!

  Title 20 California Energy Compliant

Spec

Instructions

Additional Wiring Diagrams

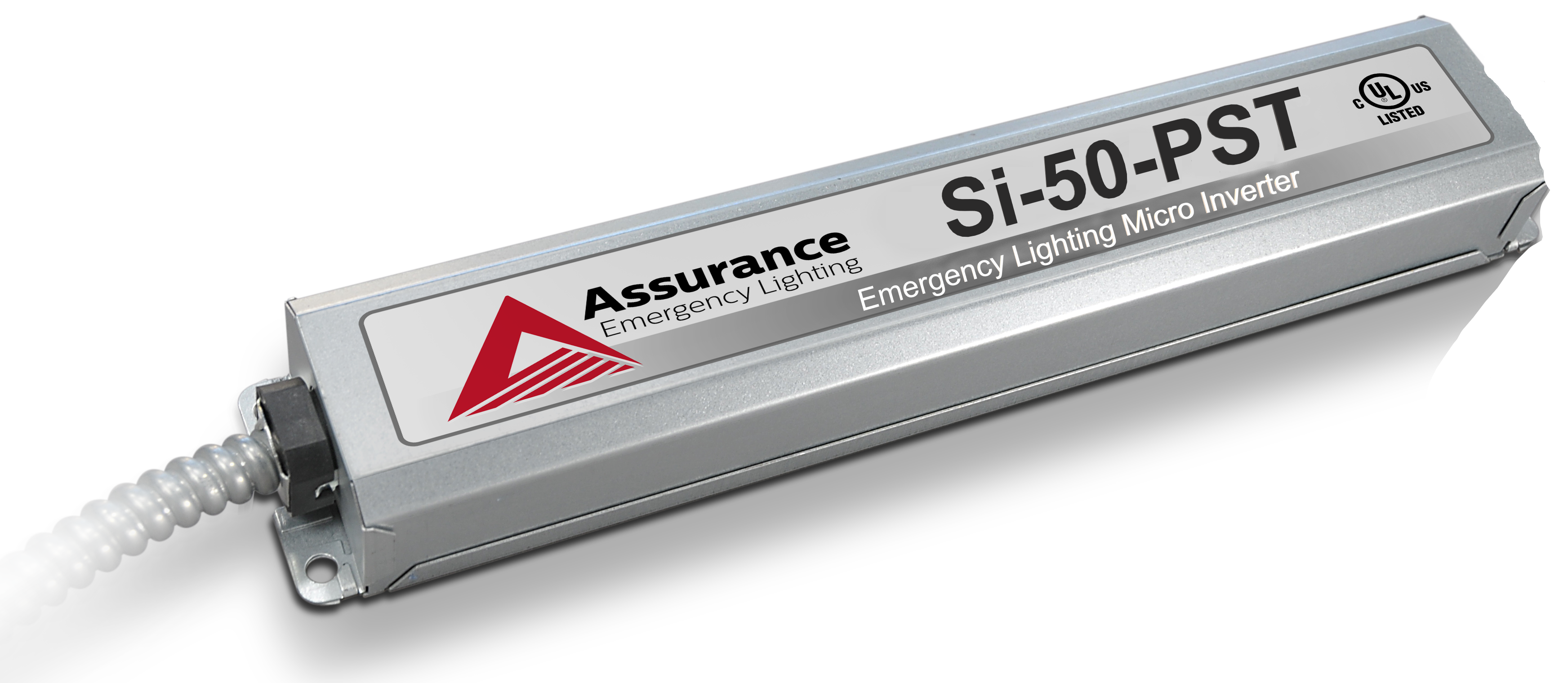

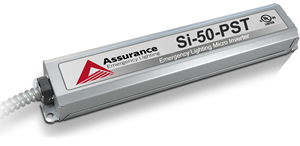

Si-50-PST

RTS-L-EXT 5FT

Optional: 5 Ft Extension for  Si-50-PST remoting of the Test Switch - Spec

Optional: RTS-FAP Fire Alarm Panel Test Switch - Spec

50 Watt UL924 Listed Pure Sine Wave Emergency Lighting Micro Inverter - Single Zone

Universal Input/Output - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology- for up to 150W luminaire loads when used with 0-10 Vdc systems

The new Si-50-PST is less than 5 lbs  It is compatible with line voltage dimming or 0-10 Vdc systems and includes features include remote mounting distance of 300 feet and our Power Share Technology. Power Share Technology allows this 50W micro inverter to operate 0-10 Vdc luminaires with normal load power of up to 150W @120vac or @277vac. This patent pending product will cut job cost and solve difficult emergency lighting challenges.

Compatible and logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-50-PST can be connected to normal and emergency loads up to 35W.

No ALCR Devices are needed when Si-50-PST  is used with switched, 0-10 Vdc or line voltage dimming applications!

   Title 20 California Energy Compliant

Spec

Instructions

Additional Wiring Diagrams

Si-200-PST

200 Watt UL924 Listed Emergency Lighting Micro Inverter, Monthly and Annual Self Testing - only 9 lbs! - Single Zone

Universal Input - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology - for up to 900W luminaire loads when used with 0-10 Vdc systems

The new Si-200-PST is less than 9 lbs and only 19”x 4.5”x1.7”, it is the smallest 200 Watt UL 924 Listed emergency lighting inverter on the market. It is compatible with line voltage dimming or 0-10 Vdc systems and includes features of self-testing, 1000 feet remote mounting and Power Share Technology. Power Share Technology allows this 200W micro inverter to operate 0-10 Vdc luminaires with normal load power of up to 900W @120vac or 1800W @277vac. This patent pending product will cut job cost and solve difficult emergency lighting challenges.

Contact factory for compatibility with logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-200-PST can be connected to normal and emergency loads up to 150W.

No ALCR Devices are needed when Si-200-PST  is used with switched, 0-10 Vdc or line voltage dimming applications!

  Title 20 California Energy Compliant

Spec

Instructions

Instructions - Hi Power Loads -PST feature without local dimmer such as hibays. Must connect 0-10 leads at driver

Si-27





27 Watt UL924 Listed Emergency Lighting Micro Inverter, Monthly and Annual Self Testing - single zone.

Universal Input - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology - for up to 110W luminaire loads when used with 0-10 Vdc systems

Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

No ALCR Devices are needed when Si-27  is used with switched, 0-10 Vdc or line voltage dimming applications!

For 2 hour FEMA applications, the Si-27 can be connected to normal loads of up to 82W and emergency output of 20 W.

  Title 20 California Energy Compliant

Spec

Instructions

Instructions - Hi Power Loads -PST feature without local dimmer such as hibays. Must connect 0-10 leads at driver

Si-36



36 Watt UL924 Listed Emergency Lighting Micro Inverter, Monthly and Annual Self Testing - Single Zone

Universal Input - Auto Adjust Output Voltage matches input voltage and frequency.

Includes Power Share Technology - for up to 180W luminaire loads when used with 0-10 Vdc systems

Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

No ALCR Devices are needed when Si-36  is used with switched, 0-10 Vdc or line voltage dimming applications!

For 2 hour FEMA applications, the Si-36 can be connected to normal load of up to 135W and emergency output of 27 W.

  Title 20 California Energy Compliant

Spec

Instructions

2 Hr Run Time Table

Instructions - Hi Power Loads -PST feature without local dimmer such as hibays. Must connect 0-10 leads at driver

Si-125

Si-125-PST

125 Watt  UL 924 Listed Emergency Lighting Inverter, Self Testing- Self Diagnostic - 3 Zone wiring

Si-125 Dual Input/Output (120/277V), UL Listed Emergency Lighting Inverter, Self-Testing Self Diagnostic. Available with optional Power Share Technology. Si-125-PST - Emergency Dimming Feature when used with 0-10 Vdc systems up to 375W  luminaire loads ( no ALCR needed when using PST Option , add -AA Option for Audible Alarm). Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-125 can be connected to normal & emergency loads of up to 94 W.

Spec Si-125 w/ Optional PST

Instructions Si-125 with Optional PST

Si-250

Si-250-PST




250 Watt  UL 924 Listed Emergency Lighting Inverter, Self Testing- Self Diagnostic - 3 Zone Wiring

Si-250 Dual Input/Output (120/277V), UL Listed Emergency Lighting Inverter, Self-Testing Self Diagnostic. Available with optional Power Share Technology- Si-250-PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 375W  luminaire loads  (no ALCR needed when using PST Option,  add -AA Option for Audible Alarm).Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-250 can be connected to normal & emergency loads of up to 187 W.

Spec Si-250 w/ Optional PST

Instructions Si-250 with Optional PST

RTS-M

Optional Remote Test Switch-Monitor

for Si-125, Si-250, Si-375 & Si-550 (& -PST models)  ONLY

Spec/Guide

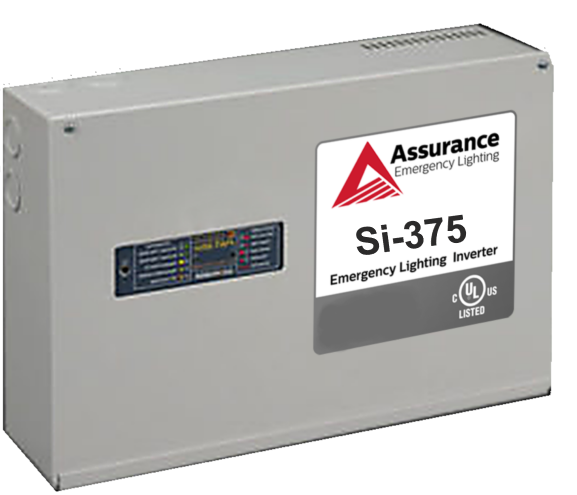

Si-375

Si-375-PST

375 Watt UL 924 Listed Emergency Lighting Inverter, Self Testing- Self Diagnostic , 4 Zone Wiring

Si-375 Dual Input/Output (120/277V), UL Listed Emergency Lighting Inverter, Self-Testing Self Diagnostic. Available with optional Power Share Technology- Si-375-PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 1125 W  luminaire loads  (no ALCR needed when using PST Option,  add -AA Option for Audible Alarm). Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-375 can be connected to normal & emergency loads of up to 280 W.

Spec Si-375 w/ Optional PST

Instructions Si-375

and Si-375-PST

Si-400

400 Watt  Emergency Lighting Inverter, Dual (120/277V) Input/Output - ETL Listed to UL924 - Single Zone Wiring

For 0-10 Vdc dim to full light bypass - include an ACLR-D20 or ALCR-D20L-C with order.

For 2 hour FEMA applications, the Si-400 can be connected to normal & emergency loads of up to 300 W.

RTS- Remote Test Switch Option Available

ETL Listed

Spec Instructions

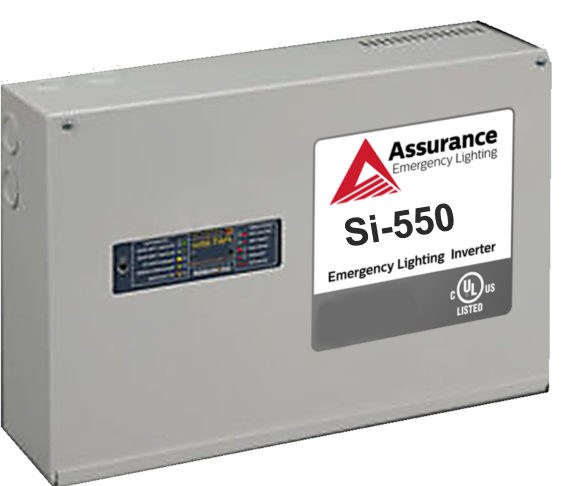

Si-550

Si-550-PST

550 Watt UL 924 Listed Emergency Lighting Inverter, Self Testing- Self Diagnostic ,  4 Zone Wiring

Si-550 Dual Input/Output (120/277V),  UL Listed Emergency Lighting Inverter, Self-Testing Self Diagnostic. Available with optional Power Share Technology- Si-550-PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 1125 W  luminaire loads  (no ALCR needed when using PST Option,  add -AA Option for Audible Alarm). Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation.

For 2 hour FEMA applications, the Si-550 can be connected to normal & emergency loads of up to 412 W.

Spec Si-550 w/ Optional PST

Instructions Si-550

and Si-550-PST

Si-600





600 Watt  Emergency Lighting Inverter, Dual (120/277V) Input/Output - ETL Listed to UL924 - Single Zone Wiring

For 0-10 Vdc dim to full light bypass- include an ACLR-D20 or ALCR-D20L-C with order.

For 2 hour FEMA applications, the Si-600 can be connected to normal & emergency loads of up to 450W.

RTS- Remote Test Switch Option Available         ETL Listed

Spec Instructions

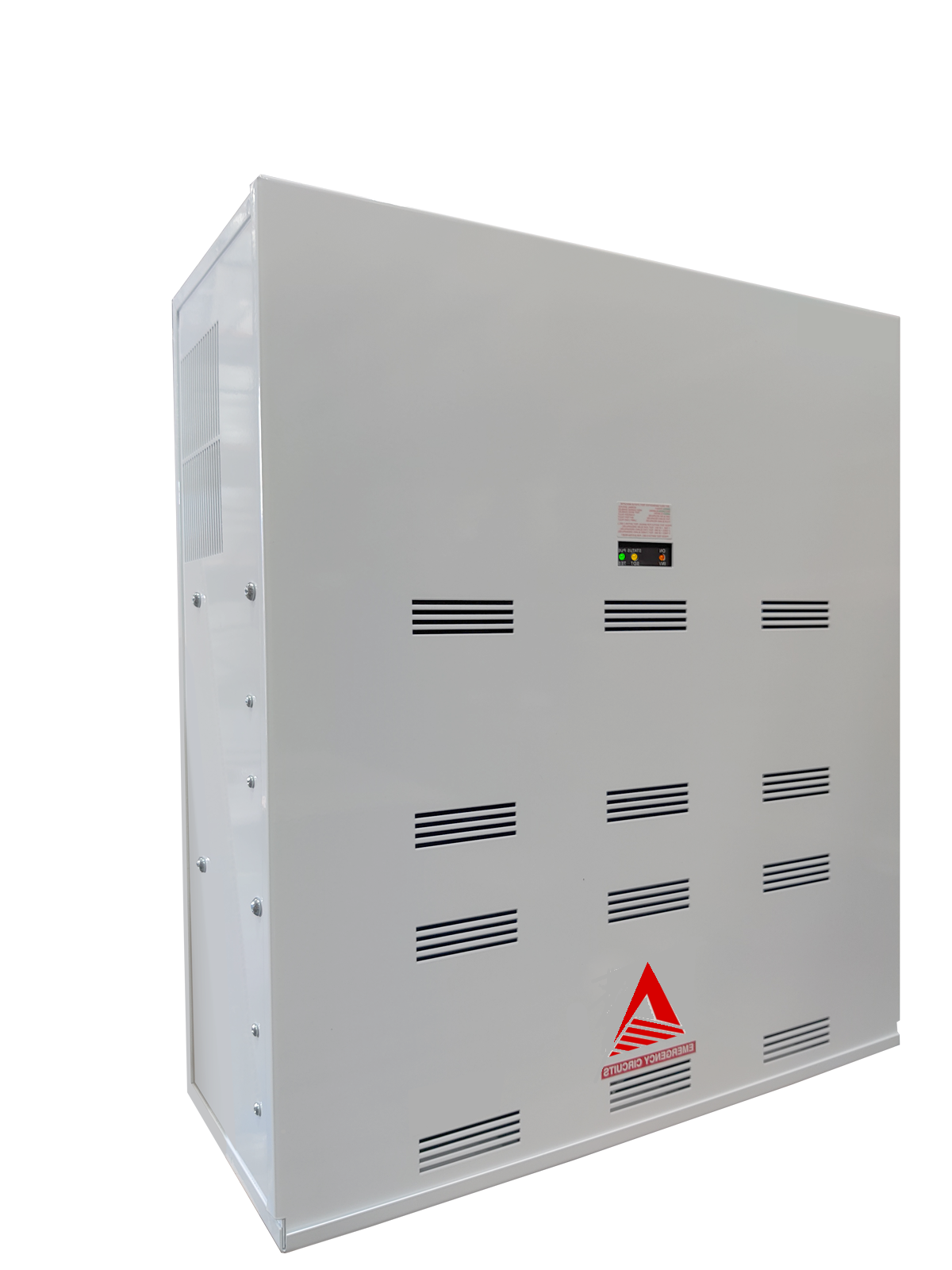

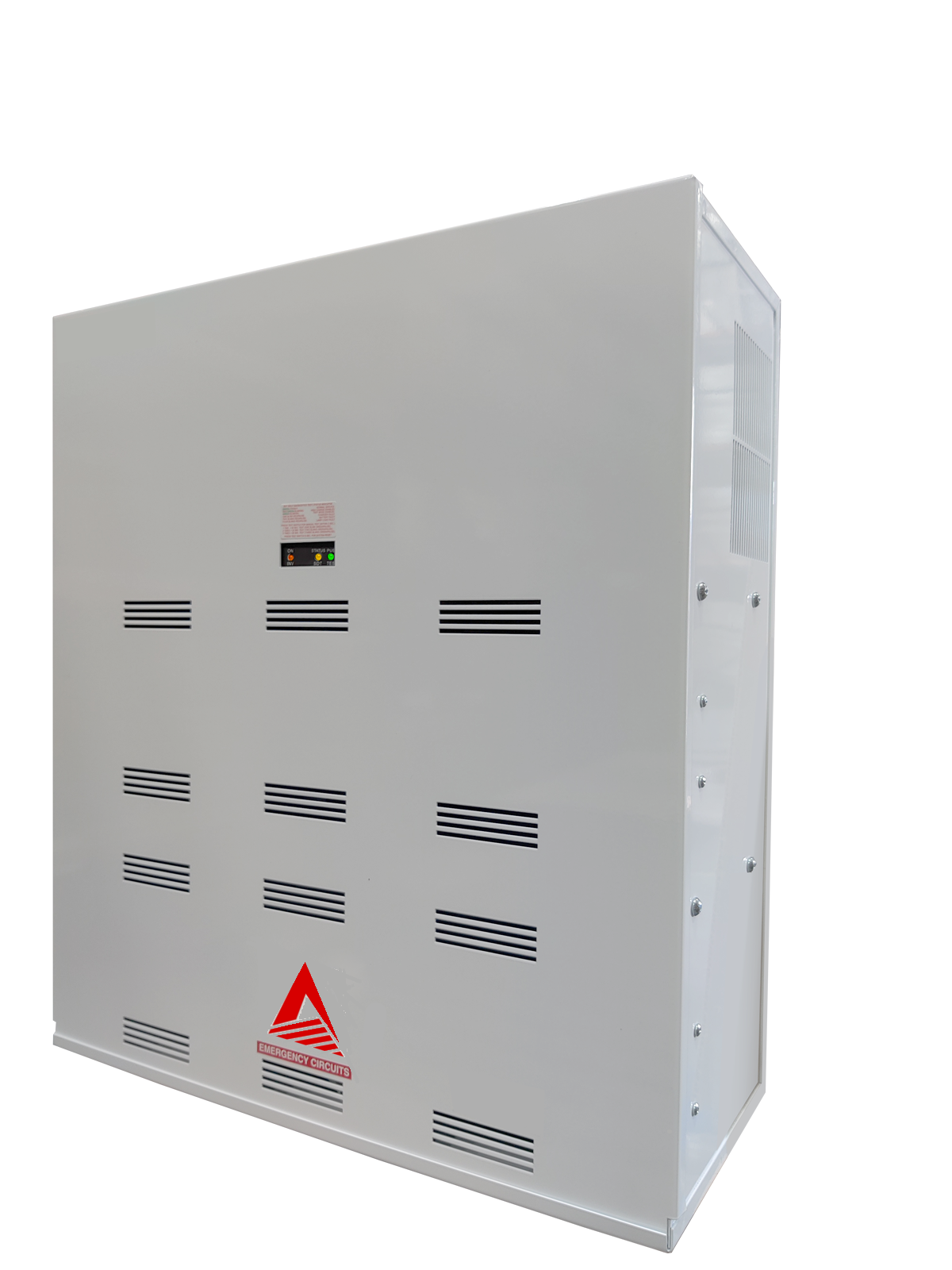

Si-750

Si-750-PST

Si-750-SDT-PST

See Spec for options

750 Watt  UL 924 Listed Emergency Lighting Inverter-

Si-750 Dual Input/Output (120/277V), Pure Sine Wave UL Listed Inverter, 4 Zone Wiring

Optional Self-Testing Self Diagnostic - SDT

Optional Power Share Technology- -PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 2400 W  luminaire loads - no ALCRs needed with - PST.  Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation. See Spec for optional circuit breakers.

For 2 hour FEMA applications, the Si-750 can be connected to normal & emergency loads of up to  560 W.

Spec Si-750 w/ Optional -PST Optional -SDT

Instructions Si-750

Si-950

Si-950-PST

Si-950-SDT-PST

See Spec for options

950 Watt UL 924 Listed Emergency Lighting Inverter

Si-950 Dual Input/Output (120/277V), Pure Sine Wave UL Listed Inverter, 4 Zone Wiring

Optional Self-Testing Self Diagnostic - SDT

Optional Power Share Technology- -PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 3120 W  luminaire loads , no ALCRs needed with - PST.  Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation. Spec for optional circuit breakers.

For 2 hour FEMA applications, the Si-950 can be connected to normal & emergency loads of up to 712 W.

Spec Si-950 w Optional -PST Optional -SDT

Instructions Si-950

Si-1150

Si-1150-PST

Si-1150-SDT-PST

See Spec for options

1150 Watt UL 924 Listed Emergency Lighting Inverter

Si-1150 Dual Input/Output (120/277V), Pure Sine Wave UL Listed Inverter, 4 Zone Wiring

Optional Self-Testing Self Diagnostic - SDT

Optional Power Share Technology- -PST  - Emergency Dimming Feature when used with 0-10 Vdc systems up to 4140 W  luminaire loads, no ALCRs needed with - PST. Not compatible with logarithmic 0-10 vdc dimming drivers with PST operation. See Spec for optional circuit breakers.

For 2 hour FEMA applications, the Si-1150 can be connected to normal & emergency loads of up to 860 W.

Spec Si-1150 w/ optional - PST  optional - SDT

Instructions Si-1150

If you need technical assistance, call 1-877-774-4775

Extended Run Product Guide

Si Series Selection Guide

Si Series Remote Mounting Guide

Si-400 & Si-600 Wiring Diagram with 0-10 Vdc Dim and ALCR Devices

.
