Emergency Lighting Units

Contact us for details.

Product Features Data Sheets

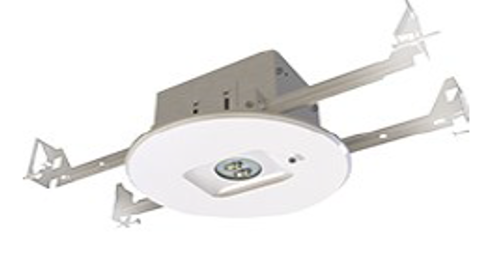

REB950-W

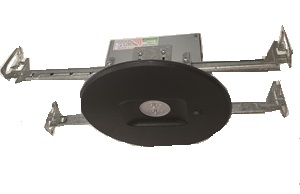

REB950-B

The Rebel

Brochure

REB950 - The Rebel Recessed Emergency Lighting

REB950 - High Power Recessed Emergency Lighting products.

The REB950 950 lumen recessed ceiling mounted LED emergency lighting units include two interchangeable lens to provide up to 80-ft center to- center spacing with a 3-ft path of egress at 12-ft mounting height or spacing of 30 ft in an open room space to meet light safety requirements.

UL 924 Damp Location Listed for 90-minute run time.

Available in White (REB950-W) and Black (REB950-B)

Applications: Showrooms, Schools, Universities, Offices, Architectural Emergency Lighting applications

Note: This unit is self-testing and will perform a monthly test and may be distracting in certain applications such as high-end restaurants.

Spec

IES File Narrow Lens

IES File Wide Lens

Instructions

REM

Check for availability!

Move to REB950-W and - B

REM - Recessed Emergency Lighting

REM -  Recessed Emergency Lighting Unit- check for availability!  Move to REB950-W  & - B

Applications: Schools, Universities, Offices, Architectural Emergency Lighting applications

Spec

IES File

Instructions

DEM

DEM - Adjustable Unit Equipment Emergency Lighting

Compact Fully Adjustable Emergency Lighting Unit - high lumen output emergency lighting unit designed for high mounting height applications or wide spacing, Offers up to 50' spacing on a 12' mounting height, Optional Self-Diagnostics available, Fully Adjustable High-Output LED lamps, High impact flame rated & UV stable white or black thermoplastic housing, environmentally friendly long-life cycle battery, Damp location listed 10-50 C rated- Wall mount - UL Listed to UL 924

Spec

Installation Instructions

HPEM

HPEM High Power Wall or Ceiling Emergency Units

Ultra-bright, energy efficient, long-life White LED adjustable lamp heads provide up to 100-ft center-to-center spacing with a 3-ft path of egress at 7-1/2-ft mounting height. • High performance chrome-plated metallized reflector and plastic lens. • 5.0 watt (12 LEDs x 0.42 watt) per head or approximately 600 lumens per head. UL Listed to UL 924

Available in White ( HPEMW) and Black (HPEMB)

Spec

IES File

Installation Instructions
. ..
