L Series

UL Listed Constant Power LED Emergency Drivers

L Series LED Emergency Drivers

The L Series emergency LED Drivers are the best choice for applications/luminaires using LED boards, LED tape or arrays operated by an external Class 2 and Class 1(HVO) AC driver.

Our UL924 Listed Constant Power Emergency LED drivers can be installed inside, on top of, or remotely from a fixture to operate a single fixture during an emergency operation. When normal AC power fails, the Assurance emergency LED drivers switch into emergency mode and support LED fixtures for 90 minutes or more. When AC power is restored, the emergency drivers automatically return to the charging mode. Numerous L Series emergency LED drivers are available for different applications and mounting heights to meet life safety codes. Our L20-CB48 central battery emergency LED emergency drivers can be used with telephone call center facilities that have their own 48 Vdc dedicated battery system.

All L Series Emergency LED Drivers are UL924 Listed for field or factory installation.

Non-Conduit models are suitable for use in Sealed & Gasketed Luminaires.

Smallest Products in the industry

5 year Full Warranty

Contact factory for alternate configurations.

Note: -CEC models are Title 20 California Energy Compliant         Most models are TAA compliant

Quick Guide - Selecting & Wiring L-CEC LED Emergency Drivers

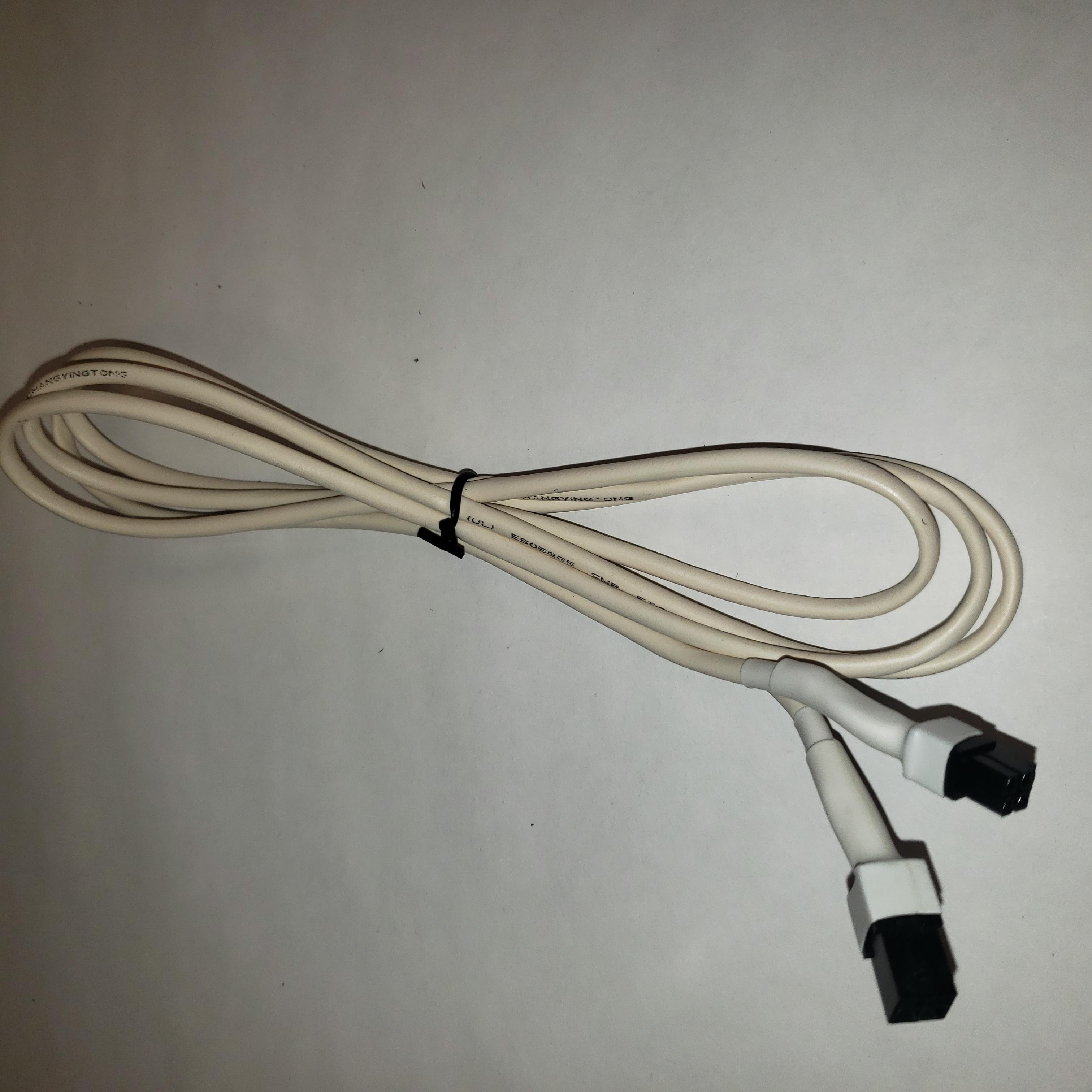

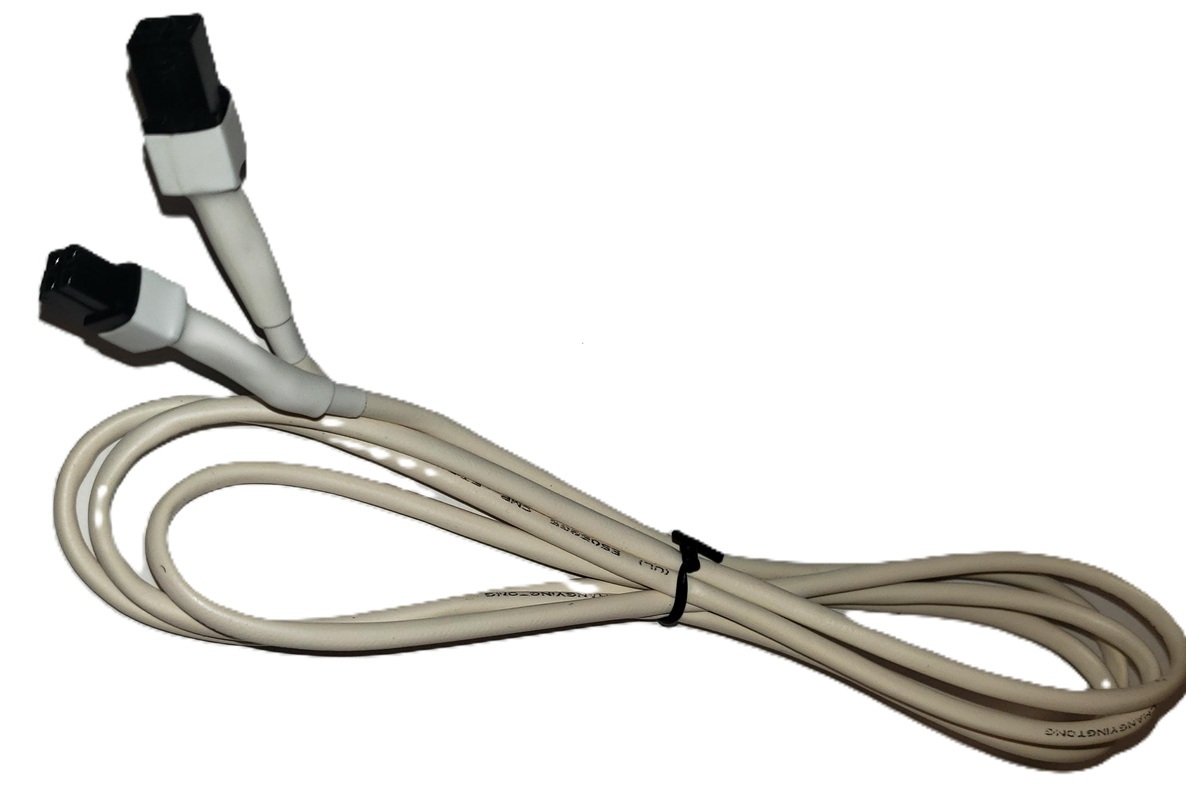

Remote mounting distance 18 feet for all-CEC models & 50 feet for L25-C - contact factory for additional information.

Product                                      Features

Output

Class 2

Data Sheets

L25-DC-CEC

(Dual Conduit)

25 Watts - Constant Power LED Emergency Driver - up to 3500 lumens - Title 20 CEC compliant - Class 2 Output

13.3"L x 2.44" W x 1.49" H

15-55 Vdc output Spec Sheet
Instructions

L25-DC-HVO

(Dual Conduit)

25 Watts - Constant Power LED Emergency Driver - up to 3500 lumens - Title 20 CEC compliant - Class 1 Output ( 50-255 vdc)

13.3"L x 2.44" W x 1.49" H

50-255 Vdc  output Spec Sheet
Instructions

L25-C-HVO-480

(Single Conduit)

25 Watts- Constant Power LED Emergency Driver- up to 3500 lumens - Title 20 CEC compliant- Class 1 Output ( 50-255 Vdc) 347- 480 VAC Input

12.6" L x 2.44" W x 2.05" H

50-255 Vdc output Spec Sheet
Instructions

**Limited Stock- Contact factory for inventory.

Use L25-DC-CEC as alternative model.

L25-C             (Single Conduit)

25 Watts -  Constant Power LED Emergency Driver - up to 3500 lumens Class2

17.14"L x 2.13" W x 1.57"H

18-54 Vdc output

Spec Sheet

Instructions

L20-DC-CEC

 L20-DC-CEC-SC (Alternate Construction)

(Dual Conduit)

20 Watts- Constant Power LED Emergency Driver - up to 2800 lumens -Title 20 CEC compliant - Class 2 output

13.3"L x 2.44"W x 1.49"H

15-55 Vdc output Spec Sheet Instructions

L14-DC-CEC (Dual Conduit)

14 Watts - Constant Power LED Emergency Driver - up to 1960 Lumens - Title 20 CEC compliant - Class 2 Output

12” L x 1.7” W x 1.14” H

15-55 Vdc output Spec Sheet
Instructions

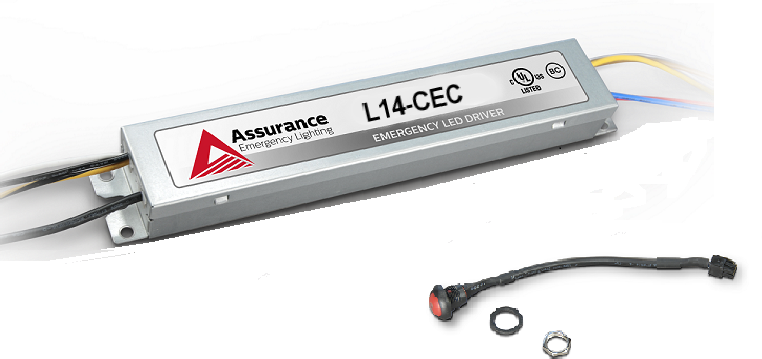

L14-CEC ( No Conduit)

14 Watts - Constant Power LED Emergency Driver - up to 1960 Lumens - Title 20 CEC compliant - Class 2 Output

12” L x 1.7” W x 1.14” H

Suitable for Sealed and Gasketed Luminaires

15-55 Vdc output Spec Sheet
Instructions

L10-CEC (No Conduit)

10 Watts- Constant Power LED Emergency Driver - up to 1400 lumens -Title 20 CEC compliant  - Class 2 Output

Suitable for Sealed and Gasketed Luminaires

9.5"L x 1.7"W x 1.14"H

15-55 Vdc output Spec Sheet
Instructions

L10-DC-CEC-SD

(Dual Conduit)

(Contact factory for non conduit models)

10 Watts-SD-Self-Diagnostic  Constant Power LED Emergency Driver - up to 1400 lumens -Title 20 CEC compliant - Class 2 Output

12"L x 1.7" W x 1.14"H

For non-conduit model- contact factory

15-55  Vdc output Spec Sheet Instructions

L10-DC-CEC

L10-DC-CEC-SC (Alternate Construction)

(Dual Conduit)

10 Watts- Constant Power LED Emergency Driver - up to 1400 lumens -Title 20 CEC compliant - Class 2 Output

9.5"L x 1.7"W x 1.14"H

15-55 Vdc output

Spec Sheet

Instructions

L10-NP-CEC  (No Conduit)

 Narrow & Low Profile)

10 Watts - Constant Power LED Emergency Driver - up to 1400 lumens-Title 20 CEC compliant - Class 2 output

Suitable for Sealed & Gasketed Luminaires

 16.53 "L x 1.21"W x 1.1"H

15-55 Vdc output Spec Sheet
Instructions

L10-ET-CEC

(No Conduit)

10 Watt - Extended Temperature (-20C to 55C) Constant Power LED Emergency Driver - up to 1400 lumens-Title 20 CEC compliant - Class 2 Output

Suitable for Sealed & Gasketed Luminaire

9.5" L x 2.4" W x 1.5"H

15-55 Vdc output Spec Sheet Instructions

L10-DC-2H

(Dual Conduit)

(Contact factory for non conduit models)

10 Watt- Constant Power LED Emergency Driver - up to 1400 lumens - Class 2 Output

2 Hour Run Time

12"L x 1.7"W x 1.15"H

For non conduit model- contact factory

15-55 Vdc output

Spec Sheet

Instructions

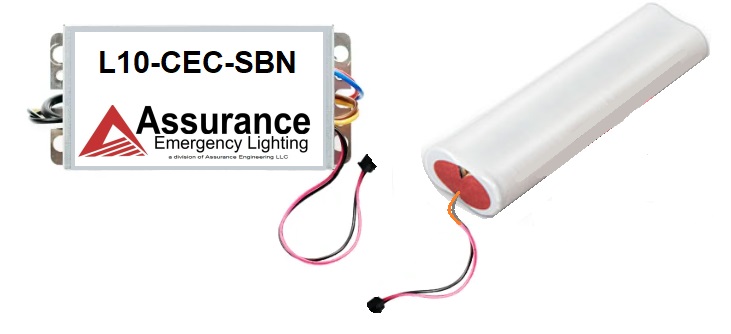

L10-CEC-SBN

(Separate battery)

10 Watt- Constant Power LED Emergency Driver - up to 1400 lumens - Class 2 Output - Separate Battery for installation in small spaces

Enclosure 5.23” L x 2.48” W x 1.18” H

Battery 5.9" L x 2.03" W x 1.02" H

15-55 Vdc output

Spec Sheet Instructions

**Limited Stock- Contact factory for inventory.

Use L10-DC-CEC as alternative model.

L8-DC

(Dual Conduit)

8 Watts -  Constant Power LED Emergency Driver - up to 1120 lumens

14.8"L x 2.13"H x 1.38"H

15-54 Vdc output Spec Sheet  Instructions

L5-CEC

(No Conduit)

5 Watts - Constant Power LED Emergency Driver - up to 700 lumens Title 20 CEC compliant

Suitable for Sealed & Gasketed Luminaires

9.5"L x 1.7"W x 1.14"H (Contractor Grade)

15-68 Vdc output Spec Sheet Instructions
Back Mount Cover BMC-2 Spec Sheet

L20-CB48

(no Conduit)

20 Watt - Constant Current- 48 Vdc Central Battery System Emergency Driver - up to 2900 lumens - typically used for Telephone Call Centers that have 48 Vdc battery systems on site - Class 2 Output

15-55 Vdc output Spec Sheet

Instructions

If you need technical assistance, call 1-877-774-4775

Wiring Diagrams- Flat Panel -Adjustable CCT - Power - L10-14-20-CEC Series

All lumen calculations are based on 140 lumens per watt luminaires
